How to Choose the Right Fume Extraction System for Your Business

The Direct Answer: Start with These Three Criteria

The right fume extraction system (FES) for your business is determined by three non-negotiable factors: the physical and chemical nature of your emissions, the required capture velocity at the source, and the permissible emission limits for your industry. Ignoring any of these leads to ineffective air pollution control, increased health risks, and compliance failures. Before evaluating any equipment, complete a contaminant characterization—this single step reduces the risk of selecting an undersized or mismatched system by over 70%.

Use this three-pillar framework to make your initial decision:

• Pillar 1: Contaminant type & concentration – Is it smoke, dust, gas, or vapor? What is the particle size distribution?
• Pillar 2: Capture method & geometry – Will you use enclosing hoods, exterior hoods, or receptor hoods? What capture velocity is achievable?
• Pillar 3: Regulatory air pollution control standard – Local limits on particulate matter (e.g., PM10, PM2.5) or specific chemicals (e.g., hexavalent chromium, lead).

Conclusion: A system that aligns these three pillars will deliver >95% source capture efficiency and maintain long-term compliance. Begin with the most restrictive requirement—often the smallest particle or the lowest exposure limit—and work backward.

Step 1 – Characterize Your Fume and Dust (The Foundation of FES Design)

Every fume extraction system must be tailored to the specific aerosol you generate. The key parameters are particle size, temperature, adhesive properties, and concentration. For example, welding fume particles range from 0.1 to 0.4 µm—submicron particles that behave like gases and require high-efficiency media (HEPA or ULPA). In contrast, wood sanding dust is often >10 µm and can be captured with a simple cyclone or baghouse.

Use this data to filter your technology choices:

• Particles < 0.5 µm (smoke, oil mist, metal fume) → Requires HEPA filter (≥99.97% efficiency at 0.3 µm) or electrostatic precipitator.
• Particles 0.5–10 µm (fine dust, most industrial powders) → Cartridge filter with MERV 15–16 or pleated bag filter.
• Particles >10 µm (coarse dust, wood chips, grit) → Cyclone pre-separator or fabric baghouse with lower efficiency.
• Gas/vapor (VOCs, acid gases, ozone) → Activated carbon or chemisorption media.

Critical data point: A system designed for 10 µm dust will capture less than 30% of 0.3 µm welding fume. Always request an independent particle size analysis of your emissions before specifying any FES.

Step 2 – Design or Select Effective Industrial Dust Collection Hoods

The industrial dust collection hood is the single most influential component of capture efficiency. Even the most powerful filter unit cannot compensate for a poorly positioned or undersized hood. The governing principle is capture velocity—the air speed at the point of contaminant release needed to overcome cross-drafts and draw fumes into the hood.

Recommended capture velocities for common operations (without interfering drafts):

• Light welding, soldering, or low‑velocity fume release: 0.5–1.0 m/s (100–200 ft/min)
• Grinding, spray painting, or medium‑speed releases: 1.0–2.5 m/s (200–500 ft/min)
• High‑speed abrasive blasting, bag dumping, or pneumatic conveying: 2.5–10 m/s (500–2000 ft/min)
• Toxic fume (lead, hexavalent chromium, beryllium): Use at least 1.5 m/s (300 ft/min) with an enclosing hood if possible.

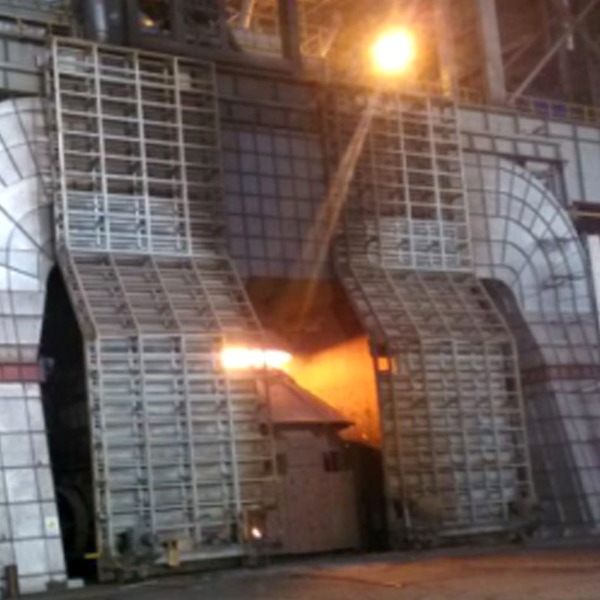

To maximize performance, prefer enclosing hoods (booths, partial enclosures, downdraft tables) over exterior hoods. An enclosing hood can reduce the required airflow by 50–70% compared to a simple canopy hood, while achieving >99% capture efficiency. If an exterior hood is unavoidable, place it as close to the source as practical—doubling the distance from the source requires a fourfold increase in airflow to maintain the same capture velocity.

Step 3 – Match Airflow and Filtration Technology for Air Pollution Control

Once you have defined the contaminant and hood geometry, you must calculate the required volumetric airflow (Q = capture velocity × hood face area or effective capture cross‑section). For a slotted hood, the airflow formula is Q = V_c × (10ײ + A), where x is the distance from the slot to the source. Oversizing the fan without proper filtration leads to high energy costs and media blow‑by; undersizing causes fugitive emissions.

Select the filtration technology based on your Step 1 characterization and the required outlet concentration for air pollution control compliance. Common FES filter types and their typical applications:

Practical rule: For welding fume or metalworking smoke, always include a HEPA after‑filter even if a cartridge filter is used; the combination achieves >99.97% overall efficiency and ensures compliance with the most stringent indoor air quality standards (e.g., OSHA PEL for hexavalent chromium at 0.5 µg/m³).

Step 4 – Verify Compliance and System Integration for Long‑Term Success

Finally, your chosen fume extraction system must satisfy local and national air pollution control regulations. Key references include OSHA permissible exposure limits (PELs), NIOSH recommended exposure limits (RELs), and EPA NESHAP (for hazardous air pollutants). Do not rely solely on the manufacturer’s “nominal efficiency” — demand third‑party test data (e.g., ISO 16890 for general ventilation filters or IEST RP‑CC001 for HEPA).

Integration into your production workflow is equally critical. Consider these operational factors:

• Automatic filter cleaning: Pulse‑jet cleaning extends filter life and maintains pressure drop below 1.5 kPa for cartridge systems.
• Monitoring: Install a differential pressure gauge and an airflow indicator; a drop of 25% in flow indicates blocked filters or hood damage.
• Energy efficiency: Variable frequency drives (VFDs) on the fan motor reduce energy consumption by 30–50% when the production line operates at reduced capacity.
• Make‑up air: For systems exhausting >2000 CFM, plan for tempered make‑up air to avoid negative building pressure—otherwise, heated or cooled air loss can triple operating costs.

Final verification: After installation, conduct a real‑time capture efficiency test using a tracer smoke or a particle counter at the breathing zone. A well‑designed FES should maintain worker exposure below 25% of the applicable PEL under worst‑case production conditions.
