Say Goodbye to Toxic Air: The Top Fume Extraction Solutions for Industrial Settings

Industrial air quality remains one of the most pressing challenges in modern manufacturing, metallurgy, and heavy processing. Workers in foundries, steel plants, chemical facilities, and refineries are routinely exposed to hazardous fumes, particulate matter, and volatile organic compounds. Prolonged inhalation of these pollutants leads to respiratory diseases, occupational cancers, and reduced productivity. Fortunately, engineering controls have evolved significantly. Among the most effective measures is the implementation of a robust fume extraction system (FES).

The Hidden Dangers of Industrial Airborne Pollutants

Before delving into specific technologies, it is essential to understand what constitutes “toxic air” in industrial settings. Heavy industries release fine particulate matter (PM2.5 and PM10), metal fumes (lead, chromium, manganese), sulfur dioxide, nitrogen oxides, carbon monoxide, and polycyclic aromatic hydrocarbons. For example, during blast furnace tapping operations, high-temperature molten iron releases a dense plume of fume containing iron oxides, graphite, and other trace elements. Without proper local exhaust ventilation, these contaminants spread throughout the workshop, settling on surfaces and entering workers’ lungs.

The health effects are not theoretical. Chronic exposure can cause metal fume fever, asthma-like symptoms, pulmonary fibrosis, and neurological damage. Moreover, regulatory bodies such as OSHA (Occupational Safety and Health Administration) and the EPA (Environmental Protection Agency) impose strict permissible exposure limits (PELs). Non-compliance leads to heavy fines, legal liability, and reputational damage. Therefore, investing in reliable capture and treatment equipment is both an ethical obligation and a business necessity.

Core Principle of Modern Fume Extraction System (FES)

A well-designed fume extraction system (FES) operates on a simple yet effective principle: capture at source, convey through ductwork, filter or treat the contaminants, and discharge clean air. Unlike general ventilation that dilutes pollutants, source capture removes them before they enter the breathing zone. The main components include:

Capture hoods (enclosed, canopy, or side-draft types)

Ducting network with adequate transport velocity

Air cleaning device (filters, scrubbers, electrostatic precipitators)

Air moving fan with appropriate static pressure

Stack or recirculation outlet

Among these, the capture hood is arguably the most critical. If the hood does not efficiently seize the fume at its generation point, downstream equipment becomes ineffective. This is where industrial dust collection hoods and specialized blast furnace solutions play a decisive role.

Industrial Dust Collection Hoods: Versatile Protection for General Processes

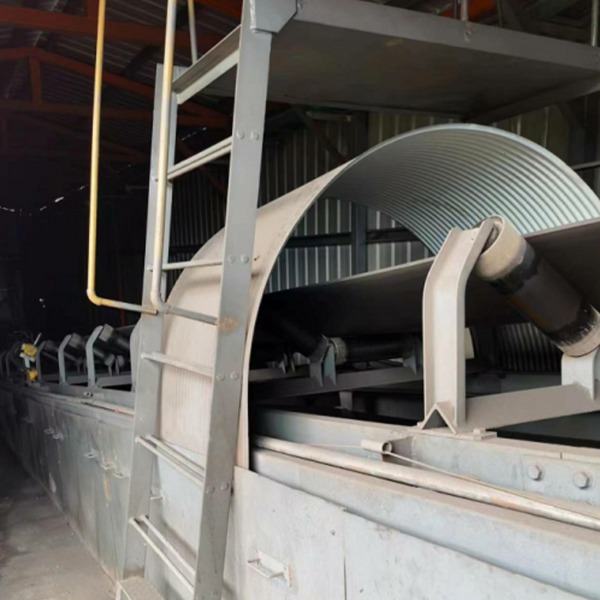

Industrial dust collection hoods are designed for a wide variety of applications: grinding, cutting, welding, material conveying, mixing, and packaging. Their geometry is tailored to the process. For instance, a flanged circular hood works well for falling material streams, while a slotted hood covers long conveyor transfer points. Key design considerations include suction velocity, hood angle, and distance from the source.

A common mistake is using an undersized hood or placing it too far from the dust generation point. The recommended capture velocity for most dry dusts ranges from 0.5 to 2.5 m/s at the point of generation. Industrial dust collection hoods must also be robust against abrasion. For heavy dust loads, lined hoods with replaceable wear plates extend service life. Additionally, modular designs allow cleaning access without dismantling the entire duct.

The table above illustrates that fully enclosed designs significantly outperform external hoods. This is particularly relevant for high-temperature, high-emission processes such as blast furnace tapping.

Blast Furnace Taphole Capture Hood: Engineering Against Extreme Conditions

One of the most demanding applications for any fume control system is the blast furnace taphole. During tapping, molten iron at temperatures exceeding 1500°C flows from the furnace into runners, releasing tremendous amounts of fume. The smoke contains fine iron oxide particles, unburned carbon, and condensed metallic vapors. Traditional side-draft hoods are often inadequate because they cannot contain sudden bursts of gas or large fume volumes.

The solution lies in a specialized blast furnace taphole capture hood. A typical high-performance design consists of a fully enclosed hood that positions directly over the taphole and runner. This hood incorporates three critical features:

Internal suction ports arranged strategically along the fume travel path. These ports create negative pressure inside the hood, drawing smoke downward and away from the operator.

A movable door on the top of the enclosure. This door is essential for maintenance access. After tapping, workers need to inspect the opening machine or clay gun (which seals the taphole). The movable door allows overhead crane access or manual inspection without removing the entire hood.

Thermal insulation materials lining the interior surfaces. Because molten iron can splash unpredictably, the hood must resist direct contact with >1500°C metal and slag. Insulation also reduces the outer surface temperature to below 60°C, protecting nearby personnel and preventing heat damage to structural supports.

Operational Benefits of an Enclosed Blast Furnace Taphole Capture Hood

When properly installed, this type of blast furnace taphole capture hood collects at least 95% of the smoke generated during three key operations:

Normal tapping (iron flowing into runners)

Opening the taphole (drilling or oxygen lancing)

Blocking the taphole (injecting mud/clay)

Even during a large blowout or sudden gas pressure release, the enclosed hood acts as a temporary reservoir. The smoke remains trapped inside the hood rather than billowing into the workshop. This containment feature prevents hazardous fugitive emissions that would otherwise violate air quality standards.

Another advantage is the reduction of heat radiation in the casting floor area. Conventional open hoods allow significant radiant heat to escape, raising ambient temperatures to uncomfortable and unsafe levels. The insulated enclosure not only captures fume but also blocks radiant heat, improving worker comfort and reducing heat stress incidents.

Durability and Safety Aspects

Given the extreme environment, material selection is paramount. The inner shell that contacts fumes typically uses stainless steel or high-temperature alloy, while the insulation layer might be ceramic fiber or refractory blanket. The outermost shell remains cool enough to touch briefly (though caution signs are still recommended).

The movable door mechanism deserves special attention. It must slide or hinge smoothly without jamming due to thermal expansion. Gas springs or counterweights assist operation. Moreover, the door includes seal strips to maintain suction efficiency when closed. Inspections of the opening machine or mud gun are performed through this top door, eliminating the need to enter the confined hood space. This design respects both capture performance and maintenance practicality.

Integrating Blast Furnace Hoods into a Complete Fume Extraction System (FES)

A blast furnace taphole capture hood does not work alone. It is one component of a larger fume extraction system (FES). Downstream of the hood, ductwork must handle high-temperature gases. A typical sequence includes:

Spark arrestor or settling chamber – removes large, incandescent particles to protect filters.

Quenching section (optional) – cools gases from 200–300°C down to <120°C for fabric filters.

Primary dust collector – cyclone or multicyclone for coarse particles.

Final filter – cartridge or baghouse with PTFE membrane for fine particulates.

Induced draft fan – sized for static pressure loss across the hood, ducts, and filters.

Because the fume from a blast furnace contains sticky, submicron particles, pulse-jet cleaning is often employed in the filter unit. The system’s control logic may interlock with the tapping schedule: when the taphole drill activates, the fan ramps up to maintain the required capture velocity.

Waste Gas Treatment: Beyond Particulate Removal

While particles are the most visible pollutant, many industrial processes release gaseous contaminants such as sulfur dioxide (SO₂), hydrogen chloride (HCl), ammonia (NH₃), and volatile organic compounds (VOCs). Removing these requires waste gas treatment technologies that go beyond simple filtration.

Waste gas treatment typically refers to a set of chemical or biological processes that neutralize or transform gaseous pollutants into benign substances. Common methods include:

Wet scrubbing – The gas stream passes through a liquid (water or alkaline/acidic solution). For example, a packed bed scrubber with caustic solution absorbs SO₂ and HCl.

Adsorption – Activated carbon or zeolite beds capture VOCs and mercury vapor. The spent media can be regenerated or disposed.

Thermal or catalytic oxidation – For combustibles, high temperatures (700–1000°C) break down VOCs into CO₂ and water. Catalytic versions operate at lower temperatures.

Selective catalytic reduction (SCR) – Removes nitrogen oxides (NOx) by reacting with ammonia over a catalyst.

In integrated systems, waste gas treatment often follows particulate control. The reason is simple: particles would clog adsorber beds or foul catalyst surfaces. Thus, a well-sequenced arrangement first uses a fume extraction system (FES) with high-efficiency industrial dust collection hoods, then passes the cleaned-but-gaseous stream to a scrubber or adsorber.

Matching Waste Gas Treatment to the Emission Source

Different industries require different waste gas treatment configurations. For a steel plant with a blast furnace, the main gaseous pollutants are carbon monoxide (typically burned off) and small amounts of SO₂. However, if the plant also operates sintering or pelletizing lines, dioxins and furans may be present, demanding activated carbon injection. Chemical plants processing monomers produce VOCs that require regenerative thermal oxidizers (RTOs).

One common mistake is designing waste gas treatment without understanding the variability in flow rate and concentration. A competent solution includes buffer tanks or bypass lines for upset conditions. Additionally, continuous emissions monitoring systems (CEMS) provide real-time data to adjust reagent feed rates (e.g., lime slurry for acid gas scrubbing).

Synergy Between Hood Design and Waste Gas Treatment

A high-capture-efficiency blast furnace taphole capture hood reduces the total gas volume requiring treatment because it prevents dilution with ambient air. Smaller gas volumes mean smaller duct diameters, lower fan horsepower, and more compact waste gas treatment equipment. Conversely, a leaky or poorly positioned hood draws in large amounts of “false air” – clean air that bypasses the source – inflating the system size unnecessarily.

Therefore, when engineers specify a fume extraction system (FES), they must start with the hood. An enclosed, insulated, movable-door design as described above is the gold standard for blast furnaces. For other processes, similar principles apply: enclose the source as much as possible, use thermal insulation where needed, and provide access doors for maintenance.

Designing for Maintenance and Operator Safety

One recurring failure in industrial fume control is the neglect of maintenance access. Many systems work well for the first six months, then performance deteriorates because hoods become clogged, ductwork leaks, or filters blind. The blast furnace taphole capture hood’s movable door exemplifies good design: operators can inspect the taphole machinery without stopping the fume extraction system (FES) or disassembling the hood. Similarly, industrial dust collection hoods should have hinged access panels or quick-release clamps.

Regular maintenance activities include:

Removing accumulated dust from hood interiors (using vacuum or compressed air).

Inspecting insulation for cracks or spalling.

Checking suction port integrity – ports should not be blocked by slag or solidified iron.

Testing door seals for air leakage.

A preventive maintenance schedule, combined with training for maintenance personnel, ensures that the fume extraction system (FES) retains its designed capture efficiency for years.

Selecting the Right Equipment: A Comparative Overview

The following table compares different extraction solutions based on application severity, efficiency, and relative cost. Note that these are general trends; actual performance depends on proper engineering.

For a blast furnace application, the combination of a high-performance blast furnace taphole capture hood with a baghouse (for particulates) and possibly a scrubber (if SO₂ is regulated) yields the best results.

Practical Implementation Steps for Plant Managers

For a facility considering an upgrade or new installation, the following steps are recommended:

Characterize emissions – Identify each source, measure fume volume, temperature, particle size, and gas composition.

Set target capture efficiency – Based on regulatory limits and internal health goals.

Select hood types – For high-temperature sources like tapholes, choose an enclosed, insulated design with movable door. For other processes, industrial dust collection hoods appropriate to the task.

Design duct and fan system – Ensure transport velocity prevents settling (typically 15–20 m/s for heavy dust).

Choose particulate control – Baghouse or cartridge collector.

Add waste gas treatment if needed – For gaseous pollutants.

Install monitoring and controls – Pressure drops, fan status, and emissions readings.

Train operators and maintenance staff – Emphasize the importance of keeping the movable door closed except during maintenance.

Common Misconceptions Addressed

Myth: “An enclosed hood will overheat and fail.”
Fact: With proper insulation and an internal air flow (suction), the hood remains within material limits. The moving air carries away radiant heat.

Myth: “Waste gas treatment is too expensive for small plants.”
Fact: Scalable solutions exist, including modular scrubbers and regenerable adsorbers. The cost of non-compliance (fines, lawsuits, health claims) often exceeds the treatment investment.

Myth: “Industrial dust collection hoods are all the same.”
Fact: Hood geometry, placement, and air velocity determine efficiency. A $5,000 hood can outperform a $50,000 one if engineered correctly.

Conclusion

Toxic air in industrial settings is not an unavoidable cost of production. It is a problem with proven engineering solutions. A well-designed fume extraction system (FES) that incorporates industrial dust collection hoods for general processes and a specialized blast furnace taphole capture hood for high-temperature applications can remove over 95% of harmful emissions. When coupled with appropriate waste gas treatment, even gaseous pollutants are neutralized before discharge.

The specific design of a blast furnace taphole capture hood – fully enclosed, featuring internal suction ports, a movable top door for maintenance, and thermal insulation to withstand molten iron splashing – demonstrates how thoughtful engineering addresses both capture performance and operational practicality. Such a hood ensures that even during blowouts, smoke is temporarily stored inside the enclosure without contaminating the workshop environment.

Managers who prioritize air quality not only protect their workforce but also improve productivity, reduce downtime, and ensure regulatory compliance. The technologies are mature, the economics are favorable, and the moral case is undeniable. It is time to say goodbye to toxic air, one extraction hood at a time.

FAQ

1. What is the main difference between a fume extraction system (FES) and general ventilation?
A fume extraction system (FES) captures contaminants at their source before they disperse, whereas general ventilation dilutes polluted air with fresh air throughout the entire space. Source capture is far more efficient and requires lower energy consumption.

2. How does a blast furnace taphole capture hood handle extreme heat and molten iron splashes?
The hood is lined with thermal insulation materials such as ceramic fiber or refractory blankets. These materials withstand direct contact with molten iron (>1500°C) and slag erosion, while keeping the outer surface temperature safe for personnel.

3. Can industrial dust collection hoods be retrofitted to existing processes?
Yes. Most hoods are designed with modular connections. However, a proper engineering assessment is needed to ensure suction velocity and duct sizing match the new hood specifications. Retrofitting often improves existing system performance.

4. When is waste gas treatment required in addition to particulate filtration?
If emissions contain hazardous gases such as sulfur dioxide, hydrogen chloride, ammonia, or volatile organic compounds, particulate filters alone cannot remove them. Waste gas treatment (scrubbers, adsorbers, oxidizers) must be added downstream.

5. What maintenance does the movable door on a blast furnace taphole capture hood require?
Regular inspection of door seals, hinges, and counterbalance mechanisms. Also, check for slag buildup around the door frame. The door should open and close freely. Any damage to the insulation near the door opening must be repaired promptly to maintain capture efficiency.
