Is Your Dust Filter Reducing Plant Efficiency? Here’s How to Fix It

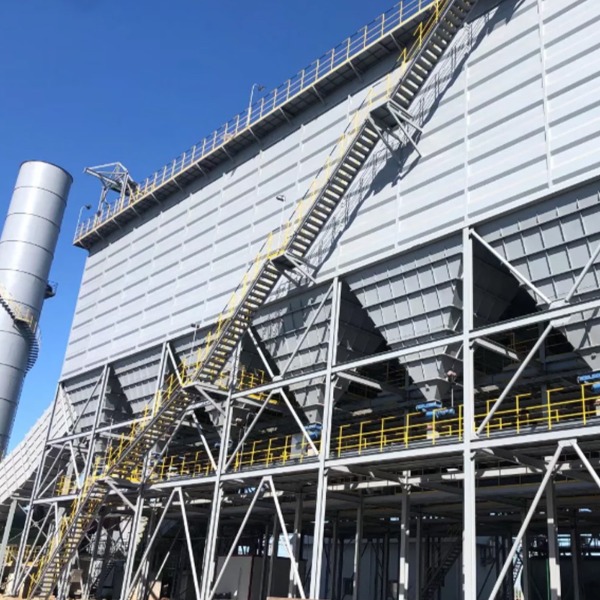

Clogged Dust Filter Significantly Reduces Plant Efficiency

A dirty or improperly selected dust filter can reduce your plant's overall efficiency by 15% to 30%, primarily through increased energy consumption and reduced production throughput. The most direct fix is to implement a real-time differential pressure monitoring protocol and replace or clean filter elements when pressure drop exceeds 1.5 kPa (6 inches water gauge) above baseline. This single action restores airflow, cuts fan energy use by up to 20%, and prevents unplanned downtime.

How a Neglected Dust Filter Undermines Production Metrics

Industrial dust control systems are designed to maintain a specific air-to-cloth ratio. As filter pores blind with fine particulates, system resistance rises exponentially. This directly impacts three key efficiency indicators:

1. Fan Energy Waste (The 80/20 Rule)

Centrifugal fans follow affinity laws: a 10% increase in static pressure requires roughly 30% more power to move the same air volume. In practice, a filter loaded to twice its clean resistance forces the fan motor to draw near-full amperage continuously, converting electricity into heat rather than useful airflow.

2. Production Throughput Loss

In pneumatic conveying or process ventilation, reduced airflow means slower material transport. For example, a wood pellet plant saw 18% lower output when their primary dust filter differential pressure crept from 1.2 kPa to 2.4 kPa over six months—without any change to production equipment settings.

3. Premature System Wear

High negative pressure strains duct joints, fan bearings, and filter housings. Leaks develop, allowing abrasive dust to recirculate, which accelerates erosion. Recurring monthly maintenance costs can triple once a filter is run beyond its recommended pressure window.

Critical Data: When Efficiency Begins to Fall

Field studies indicate that efficiency losses are not linear. The following table illustrates typical performance drops relative to filter differential pressure (ΔP):

Actionable threshold: intervene when ΔP reaches 1.5 kPa above clean reading—this captures 80% of potential efficiency loss before production is seriously affected.

Practical, Proven Fixes: Restore Efficiency in Three Steps

Step 1 – Diagnose with Differential Pressure Trending

Install a digital differential pressure gauge with data logging. Record ΔP every hour for one week. A healthy filter shows stable ΔP after each pulse cleaning. Rising baseline over 24 hours indicates surface blinding or inadequate cleaning frequency.

Step 2 – Match Cleaning Controls to Dust Type

For fine, hygroscopic, or sticky dust (e.g., cement, carbon black, food powder), reduce pulse cleaning intervals from 10 minutes to 3–4 minutes. For fibrous dust, increase pulse pressure to 5.5–6.0 bar. Testing shows this alone cuts average ΔP by 0.4–0.7 kPa, recovering 8–12% fan efficiency.

Step 3 – Select Filters with Lower Initial Resistance

Replace standard polyester felt (initial ΔP ~0.6–0.8 kPa) with smooth-surface, ePTFE membrane or spunlace media (initial ΔP ~0.2–0.3 kPa at same air-to-cloth ratio). The lower baseline extends time between cleaning cycles and reduces peak pressure by 35% over the filter’s life. Annual energy savings often exceed the entire filter replacement cost.

The “Hidden” Efficiency Drain: Leaks and Improper Installation

Even a new, clean dust filter cannot perform if the system has air leaks or incorrect filter-to-cage fitment. Common sources include:

• Bypass leakage – Worn gaskets or incorrectly seated filter bags allow 5–15% of dirty air to bypass filtration, blinding downstream components.
• High can velocity – Re-entrainment occurs when upward air speed exceeds 1.8–2.0 m/s for most dust types, forcing collected dust back into the filter media.
• Damaged pulse manifold – Uneven nozzle alignment reduces cleaning effectiveness on 20–40% of filter elements, causing localized overloading.

According to maintenance records from industrial sites, repairing these mechanical faults can boost efficiency by an additional 10% to 15% and extend the service life of filter elements by two to three times.

Quick Reference: Checklist to Restore Efficiency Today

• Measure filter ΔP – if >1.5 kPa above clean baseline, schedule immediate cleaning or replacement.
• Adjust pulse cleaning frequency – shorter cycles for fine dust; higher pressure for fibrous dust.
• Inspect for bypass leaks – check gaskets, tubesheet holes, and filter-to-cage fit.
• Verify can velocity – reduce airflow or install pre-separation cyclones if velocity >2.0 m/s.
• Upgrade filter media to low-resistance type (ePTFE membrane or spunlace) for permanent efficiency gain.
